Rigid Cam masat masa galaw ai daw

Rigid Cam Indexing Unit gaw -htuk manu ai, n-gun ja ai aten kadun shamu shamawt ai lam hpe shalai ya ai jak langai mi re. Shi a madung lam gaw, rigid cam profile hte driven part lapran na jak hte matut mahkai ai lam hku nna, hkrak tup bungli galaw ai shara galai shai ai lam (sh) angle indexing hpe lu la na matu re. Rigid Cam Indexing Unit hpe grai tsaw ai shara hpe hkrak hkra tawn da ai, n-gun rawng ai, n-gun rawng ai atsam ra ai automation jak ni hta grai lang ma ai.

Rigid Cam Indexing Unit gaw, grai n-gun ja ai hkrang hte galaw da ai cam indexing jak rai rai nna, n-gun ja ai cam ladat hku nna, n-gun ja ai cam ladat hku nna, zero backlash hte hkrak hkrak index galaw ai shamu shamawt lam hpe lu la mai ai. Dai hpe laksan hku nna, lit kaba, hkrak ai lam kaba, n-gun kaba ra ai industrial scenarios ni a matu galaw da ai re.

Rigid Cam Indexing Unit gaw cam ladat a npawt tara hpe madung tawn nna galaw da ai index galaw ai jak rai rai nna, shi a "rigidity" hpe madung lam lahkawng hta mu lu ai:

1). Structural rigidity: Cam, mawdaw gau ai arung arai ni (rollers hte gear zawn re ai ni), hte madi shadaw ai frame ni hpe -n-gun ja ai arung arai ni (alloy steel zawn re ai) ni hte galaw da nna, arung arai ni a lapran ngang kang ai matut mahkai lam hpe hkrak tup hkrak galaw ai hku nna, elastic deformation (sh) n-gun n rawng ai gap ni n nga ai sha, hkam la lu ai.

2). Motion rigidity: Cam hte mawdaw gau ai daw lapran na meshing galaw ai lam gaw, jak rung hku sha matut mahkai ai lam rai nna, shamu shamawt ai lam hpe cam profile curve hku nna tsep kawp dawdan ya ai, electronic hkang ai delay (sh) slip n lawm ai sha, shamu shamawt ai lam hpe hkrak hkrak galaw lu ai hte bai galaw lu ai lam hpe madi shadaw ya ai.

Rigid Cam Indexing Unit a shamu shamawt ai lam gaw, cam hte hkan nang hkan sa ai wa lapran atik anang galaw ai lam hpe madung tawn ai:

1). Drive stage: Motor gaw cam hpe shinggrup na matu shadut ya nna, cam profile gaw shinggrup ai daw (rollers zawn re ai) hpe shamu shamawt shangun ai, output shaft (sh) indexing plate hpe matut manoi shinggrup na matu (sh) linear hku shamu shamawt na matu, preset galaw da ai bungli shara de shadut ya ai.

2). Pause stage: Cam profile gaw "n shamu n shamawt ai stage" de shang wa ai shaloi, mawdaw gau ai daw hpe ngang grin ai shara kaw shinggrup da nna, indexing plate (sh) bungli galaw ai table gaw hkrak hkrak hkring mat ai. Ndai aten hta, galaw shapraw ai lam, shinggyin la ai lam, jep joi ai lam hte kaga lam ni hpe galaw mai sai.

3). Loop: Cam gaw matut nna shinggrup nga ai, contour curve hta aten kadun galai shai ai lam ni hku nna "motion pause motion" ngu ai aten kadun laman shinggrup ai lam hpe lu la ai. Bungli galaw ai shara shagu a shamu shamawt ai angle hte hkring sa ai aten hpe cam contour hku nna tsep kawp dawdan ya lu ai, n-gun jat ai sensor (sh) electronic calibration n ra ai.

Rigid Cam Indexing Unit gaw ya aten na heavy-duty hkrak hkrak indexing hpaji masa a pinnacle hpe madi shadaw ya ai rai nna, shi a ningnan ai rigid design concept gaw, n-gun ja ai n-gun kaba ai masa hta htunghking garan ai ni a hkrak hkrak hkra machyi ai lam a industry manghkang hpe tsep kawp hparan ya lu ai. Hpyen masa hta lang ai arung arai hpaji masa hpe hkrak tup hkrak re ai jak hpaji hte hkum tsup hkra kayau kaya galaw ai hku nna, n mu yu ai ngang kang ai hkrak tup kam hpa mai ai triangular balance solution hpe high-end arung arai ni hpe galaw shapraw lu na matu jaw ya lu sai.

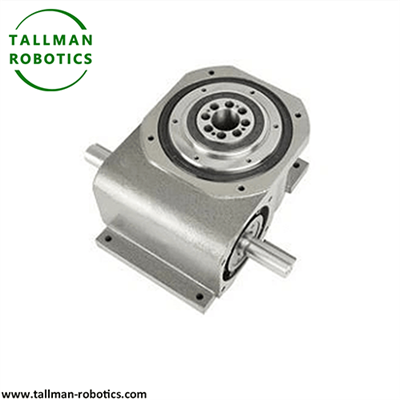

Ndai kaw Ndai laika man hta, Cam Indexer hpe galaw shapraw ai hta ningbaw ningla rai nga ai TallMan Robotics kaw na DS Cam Indexers 80 hpe tang madun dan ga ai, lawu na hte maren data sheet, galaw shapraw ai sumla ni,vedio ni hpe mu lu na re:

Bai nna, bungli masing ni hpe grau nna yu na matu (sh) Youtube hku nna anhte a video gallery de shang yu na matu hkap tau la ga ai: https://www.youtube.com/@tallmanrobotics

Rigid Cam Indexing Unit hpe jai lang ai shara ni:

1). Hpa majaw nga yang, n-gun ja ai jak rung ni hpe galaw ai lam: CNC jak rung arung arai ni a indexing worktable hpe, box hte valve hkum hkrang zawn re ai polyhedral daw ni hpe kalang lang shinggrup na matu hte, n-gun law law lang galaw na matu lang ai rai nna, bungli galaw ai arung arai ni a n-gun hpe ton law law du hkra hkam sharang lu ai.

2). Mawdaw arung arai ni hpe shinggyin la lu ai: Engine cylinder block ni hte gearbox nta ni a matu htu shaw ai hte htu shaw ai lam gaw, n-gun ja ai indexing unit ni hku nna, bungli galaw ai shara hpe n-gun ja ai hku galai shai ai lam hpe lu la ai majaw, n-gun ja ai jak rung a shadawn shadang ni hpe n-gun n-rawng hkra galaw lu ai.

3). Precision chyam dinglik ai arung arai ni: Optical chyam dinglik ai hte coordinate shadawn ai jak ni hta, chyam dinglik ai bungli galaw ai arai hpe aten kadun laman shinggrup na matu shadut ya ai majaw, chyam dinglik ai shara hpe<=micrometers ngu ai shut ai lam hte hkrak ai hku tawn da lu ai.

4). Hpa majaw nga yang, n-gun kaba ai automated galaw shapraw ai line ni: bearing hte gear grinding hte heat treatment galaw shapraw ai line ni zawn re ai ni gaw, bungli galaw ai shaloi, n-gun (sh) n-gun shayawm ai lam n byin na matu, bungli galaw ai arung arai a n-gun hte galaw shapraw ai n-gun a composite load hpe hkam sharang ra ai.

Rigid Cam Indexing Unit gaw "n-gun ja ai hkrang" hte "cam indexing npawt tara" hpe kahkyin gumdin da ai re. Shi a madung manu gaw, shara jahkrat ai lam hpe hkrak hkrak hte kam mai ai hku galaw lu na matu, yak hkak ai electronic hkang ai lam hpe n kam sham ai sha, n-gun ja ai-duty hte high-precision masa ni hta ngang grin ai aten kadun shamu shamawt lam hpe lu la na matu rai nga ai. Dai majaw, high-end automation jak ni hta n mai malap ai core transmission component langai byin wa sai, grau nna, n-gun ja ai n-gun ja ai, lit hkam lu ai atsam, jak ni hpe aten galu ngang grin hkra galaw ra ai hpaga lam ni a matu htuk manu ai.
