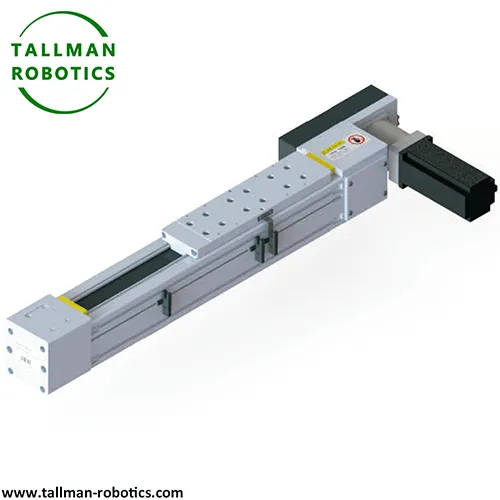

Linear Belt Drive Actuator ngu ai gaw, linear shamu shamawt lam hpe lu la na matu, n-gun rawng ai n-gun rawng ai wan jak langai rai nga ai. Motor gaw belt hpe shachyut nna, slide table hpe shachyut na matu, lawan ai -, galu kaba ai linear positioning a matu shachyut ai. Linear Belt Drive Actuator a madung lam ni gaw, lawan ai (5m/s du hkra), galu kaba ai hkrun lam (10m du hkra), manu n law ai majaw, n-gun n law ai kaw nna n-gun kaba ai lit ni hte n-gun kaba ai mahtai jaw ai lam ni, logistics garan ginhka ai, laser galaw ai, kaga electronic field ni hpe shinggyin la ai zawn re ai automation scenario ni a matu grau nna htuk manu ai.
Linear Belt Drive actuator gaw, n-gun rawng ai n-gun rawng ai n-gun rawng ai n-gun rawng ai n-gun rawng ai jak langai rai nga ai. Dai gaw, n-gun n law ai hkrang hte lawan ai akyu ni hpe kayau kaya galaw nna, belt hte pulley a meshing transmission hku nna, lawan ai hte galu kaba ai linear displacement hpe lu la ai. Linear Belt Drive Actuator hpe n-gun n law ai hte n-gun n law ai n-gun n law ai n-gun ni hpe n-gun n jaw ai sha, n-gun n law ai hku galaw ai lam ni hta grai lang ma ai.
Daibungli galaw ai npawt taranaLinear Belt Drive Actuator gaw, n bung ai shapoi ai ladat hpe madung tawn ai:
motor gaw active pulley hpe shinggrup na matu shadut ya nna, shadut ai pulley hpe ntsa kaw n-gup lawm ai synchronous belt hte shadut ya ai. Belt hte pulley a n-gup ni gaw n hkrat hkra hkrak hkra mesh galaw da ai; Actuator a shamu shamawt ai daw ni (slider zawn re ai ni) hpe shingkyit ntsa e ngang ngang jum da nna, shingkyit a cyclic shamu shamawt ai lam hte linear reciprocating shamu shamawt lam hpe lu la ai. Transmission galaw ai shaloi, n-gun shayawm ai lam gaw, motor a shinggrup ai angle hte maren sha rai nna, shamu shamawt ai lawan ai hpe motor a lawan ai hpe hkang ai hku nna galai shai mai ai. Nkau model ni hta gaw semi closed loop hpe hkang lu na matu encoder ni hpe bang da ai.

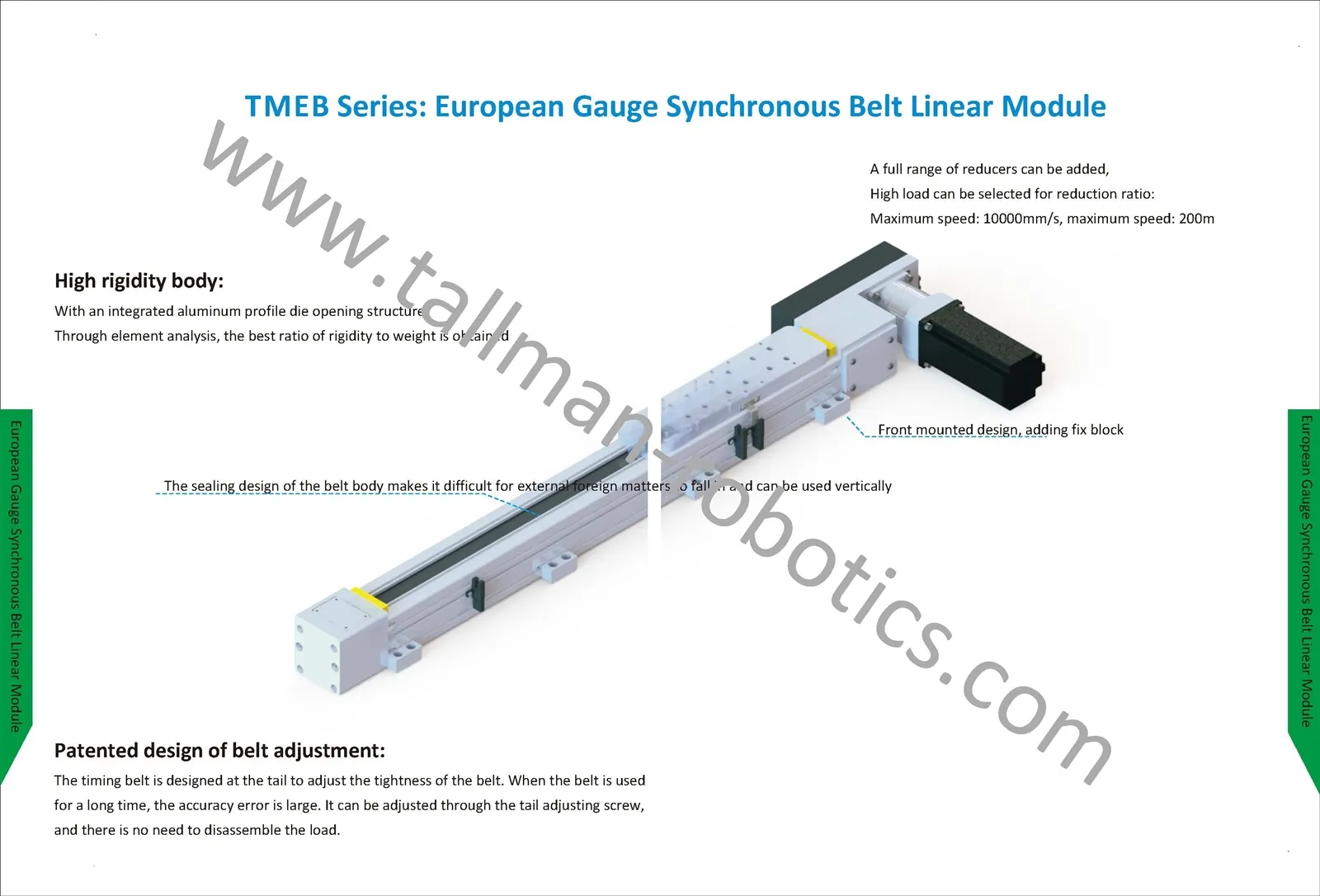

Hkrang hku yu yang, Linear Belt Drive Actuator hpe madung hku nna daw mali hku nna hpaw da ai:
n-gun jaw ai n-gun (servo (sh) stepper motor, n-gun jaw ai), n-gun dat ai arung arai ni (active pulley, n-gun dat ai n-gang, synchronous belt, core n-gun dat ai arung arai), lam madun ai ladat (linear lam madun ai rail hte slider, linear shamu shamawt ai lam hpe kam shangun ai), hte frame base (arung arai amyu myu hpe madi shadaw ya ai hte n-gun atsam hpe makawp maga ya ai) ni hpe n-gun jaw ya ai. Belt ni hpe polyurethane (sh) rubber hte galaw nna, n-gun ja hkra galaw na matu, n-gang n-gang ni hpe bang da ai. Pulley ni hpe law malawng gaw aluminum alloy (sh) steel hte galaw da ai majaw, n-gup hpe hkrak hkra galaw lu ai.
Ndai kaw lawu na hte maren EU Standard Belt hte galaw ai Actuators ni hpe nanhte hpe tang madun dan ga ai.
Nang hpe grau nna bungli masing ni hpe yu na matu (sh) Youtube hku nna anhte a video gallery de shang yu na matu hkap tau la ga ai: https://www.youtube.com/@tallmanrobotics
|
Kasi N re ai |
Motor Atsam (W) |
Hkum hkrang Nda (mm) |
Bai galaw mai ai (mm) |
Timing Belt a lam |
Grau htum ai lit (kgs) |
Grau htum ai n-gun (mm) hta lawan dik htum (mm/s) |
Rated n-gun |
Linear lam madun wanleng |
|||
|
Galu (mm) |
Hkring mat ai garan gachyan |
Nlung (mm) |
Nda tang re ai |
Dingyang |
|||||||
|
TMEB65-CR |
200W |
65 |
±0.1 |
32 |
3:1 |
50 |
4 |
2 |
5500mm hta 2500mm/S |
59 |
15×12.5-1 |
|
5:1 |
30 |
12 |
5 |
5500mm hta 1500mm/S |
99 |
||||||
|
7:1 |
21.43 |
25 |
9 |
5500mm hta 1071.5mm/S |
139 |
||||||
|
10:1 |
15 |
50 |
14 |
5500mm hta 750mm/S |
199 |
||||||
|
400W |
3:1 |
50 |
12 |
7 |
5500mm hta 2500mm/S |
159 |
|||||
|
5:1 |
30 |
34 |
15 |
5500mm hta 1500mm/S |
265 |
||||||
|
7:1 |
21.43 |
65 |
24 |
5500mm hta 1071.5mm/S |
372 |
||||||
|
10:1 |
15 |
65 |
38 |
5500mm hta 750mm/S |
531 |
||||||
|
750W |
3:1 |
50 |
23 |
13 |
5500mm hta 2500mm/S |
300 |
|||||
|
5:1 |
30 |
65 |
28 |
5500mm hta 1500mm/S |
500 |
||||||
|
7:1 |
21.43 |
65 |
45 |
5500mm hta 1071.5mm/S |
700 |
||||||
|
10:1 |
15 |
65 |
65 |
5500mm hta 750mm/S |
1000 |
||||||
|
TMEB85-CR |
200W |
80 |
±0.1 |
45 |
3:1 |
66.66 |
2 |
1 |
5500mm hta 3333mm/S |
44 |
20×15.5-1 |
|
5:1 |
40 |
7 |
3 |
5500mm hta 2000mm/S |
74 |
||||||
|
7:1 |
28.5 |
14 |
6 |
5500mm hta 1425mm/S |
104 |
||||||
|
10:1 |
20 |
28 |
9 |
5500mm hta 1000mm/S |
149 |
||||||
|
400W |
3:1 |
66.66 |
7 |
4 |
5500mm hta 3333mm/S |
120 |
|||||
|
5:1 |
40 |
19 |
10 |
5500mm hta 2000mm/S |
199 |
||||||
|
7:1 |
28.5 |
38 |
16 |
5500mm hta 1425mm/S |
279 |
||||||
|
10:1 |
20 |
76 |
26 |
5500mm hta 1000mm/S |
398 |
||||||
|
750W |
3:1 |
66.66 |
13 |
8 |
5500mm hta 3333mm/S |
225 |
|||||
|
5:1 |
40 |
36 |
18 |
5500mm hta 2000mm/S |
375 |
||||||
|
7:1 |
28.5 |
71 |
30 |
5500mm hta 1425mm/S |
525 |
||||||
|
10:1 |
20 |
80 |
50 |
5500mm hta 1000mm/S |
750 |
||||||
Application hpenaLinear Belt Drive Actuator gaw lawan ai, tsan ai, n-gun n law ai masa ni hta madung tawn ai:
PCB board transportation in electronic manufacturing, beam movement of laser engraving machines, material pushing of packaging machinery, large-scale platform drive of 3D printers, sorting systems for warehousing and logistics, etc. Express sorting machine (speed 3m/s, repeat positioning ± 0.5mm), food packaging line (sanitary grade stainless steel model), PCB board detection equipment (multi station synchronous motion), screen laminating machine (anti-static belt), laser marking machine X-Y axis (acceleration>1G), nhtoi htoi ai panel hpe masat da ai jak (10m galu ai stroke), shingra tara sample hpe shi hkrai shi hka htawt sit ai (low vibration design), lamu kasa telescope hpe myit maju jung ai ladat ni hpe jai lang ai.
Linear Belt Drive Actuator a akyu ni gaw, lawan ai hku n-gun dat ai (5m/s du hkra), n-hkap la ai stroke (meter law law galu ai stroke hpe frame hpe jat nna lu la mai ai), nsen n-gun n law ai, asan sha gram lajang ai lam (eusual or n-gun dat n-gun n ra ai), raitim, shi a load capacity hta n-gun n law ai. 500N du hkra), n-gun n-gun rawng ai shara (± 0.1mm 0.5mm) hte, 2019 ning a matu htuk manu ai. light load application ni hta lawan ai hte stroke ra ai lam ni hte n-gun n law ai hkrak ai lam ni ra ai.
